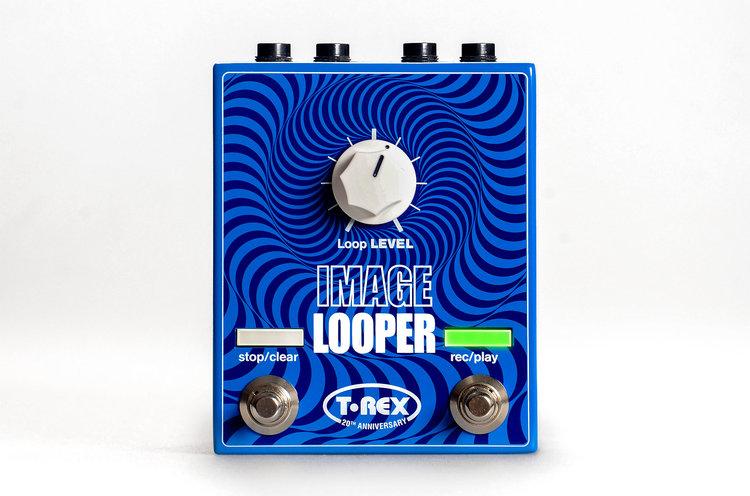

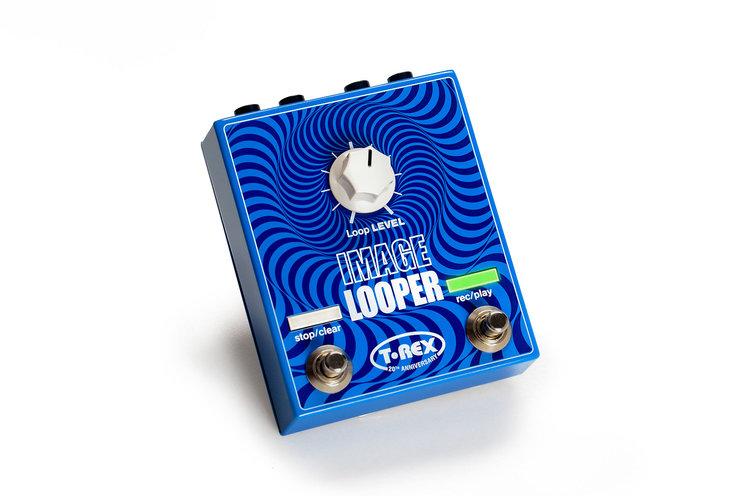

IMAGE LOOPER

The Image looper offers simplicity and high quality audio, with a maximum loop length of 5,8 min. in true stereo/mono operation.
A phrase looper has become a useful tool for guitar and bass players, because it is such a useful tool:
For teaching/clinics, a basic chord progression can be recorded on the spot as a quick and easy way of providing a sonic canvas for explaining ideas/theory.
Solo artists/buskers can record percussive “rhythms” or entire songs, then layer additional stuff on top in real-time for a pseudo “band” sound.
Saved loops can be played back even after power-down, so it can also work as a small sampler foot controlled audio playback machine.

Having all the available commands spread out on two footswitches, each with an led-bar for indication, the user will always know what the looper is doing – the leds will indicate which mode is currently running:


• Recording: The rec/play led is lit

• Playback: The rec/play led is blinking

• Stopped recording: The stop/erase led is lit

• Stopped playback: The stop/erase led is blinking

• Undo: Both led´s are blinking

• Empty: No led´s are lit/blinking

Very intuitively, the led´s indicate what just happened, what IS happening and/or what is about to happen if a switch is pressed.
The audio processing keeps the sound quality intact with no added compression for a clean and clear “image” of what you feed into it when recording.

• Dedicated footswitches/leds for Rec/Playand Stop/Clear

• Intuitive, logical user interface for less “confusion” and double-duties

• 24 bit conversion, 46KHz/32bit floating point processing

• 5,8 minute looping time

• Autosave in stop mode

• Uncompressed audio

• Undo/Redo function

• Unlimited overdubs

• Loop level control

• Stereo In/Out

• TECH SPECS

  Input impedance	500K stereo
  Output impedance	1K Ohm
  Power supply	9/12 VDC, 2.1mm barrel plug, center negative
  Current draw @ 9VDC	100 mA max.
  Max. input level Vp-p	2.5Vp-p
  Battery type	9V battery 6F22
  Battery life	30 minutes
  External connectors	Input (L(mono)/R), Output (L/R), DC input
  Controls	Loop level, Stop/Clear, Rec/Play
  Pedal size incl. knobs (W x H x D)	100 x 55 x 120 mm / 3.9 x 2.2 x 4.7 in
  Weight excl. battery & packaging	0.355 kg / 12.5 oz
