HIGHLY TUNABLE OCTAVES + FIFTH

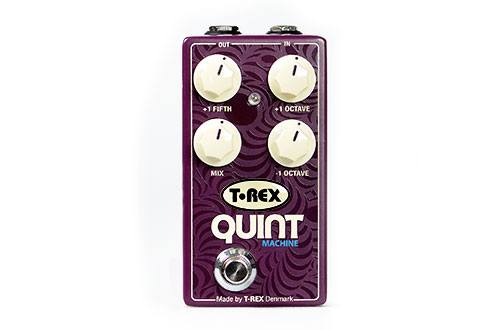

Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.

A WHOLE NEW WORLD OF SONIC POSSIBILITIES

• Octave up, octave down, 5th up

• Individual volume controls, plus master mix

• Ultra-fast polyphonic tracking

• Replicate organ, synth or 12-string sound

• Play power chords on a single note

• TECH SPECS

  Input impedance @ 1KHz	Higher than 1M Ohm
  Output impedance @ 1KHz	Lower than 1K Ohm
  Power supply	9V DC (T-Rex FuelTank)
  Minimum power supply voltage	8V DC
  Maximum power supply voltage	12,5V DC
  Current draw @ 9V DC	145 mA
  Maximum input signal V p-p	3V p-p
  Battery type	9V battery 6F22
  Battery life	30-60 minutes
  External connectors	input jack, output jack, 9V DC jack
  Controls	on/off switch, mix, +1 octave, -1 octave, +1 fifth
  Pedal size incl. knobs (W x H x D)	60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
  Weight excl. packaging	0,21 kg / 7,4 oz
