A GIANT LEAP FOR WAH-WAH PERFORMANCE

The T-Rex SHAFTER is our best shot at a genuine new-generation wah-wah pedal. With loads of adjustability, a much wider frequency sweep, quieter operation, greater durability and 3 completely different “wah” characters, it addresses all the weaknesses of the classic wah point by point. We think it’s the best wah-wah ever made, and we know you’ll love how it sounds and performs.

A rugged, highly versatile wah-wah effect that puts you in charge of your pedal instead of the other way around.

TRUE NEW GENERATION WAH

• 3 completely different “wah” characters

• Custom made coils & inductors enhance both growl and wah

• Highly tuneable via boost and slope knobs

• Hot spot switch for classic or “heal to toe” sweep

• Potentiometer-free operation prevents noise and mechanical wear

• TECH SPECS

  Input impedance @ 1KHz	Higher than 1M Ohm
  Output impedance @ 1KHz	Lower than 1K Ohm
  Power supply	9V DC (T-Rex FuelTank)
  Minimum power supply voltage	8V DC
  Maximum power supply voltage	12,5V DC
  Current draw @ 9V DC	45 mA
  Maximum input signal V p-p	3V p-p
  Battery type	9V battery 6F22
  Battery life	max. 4 hours

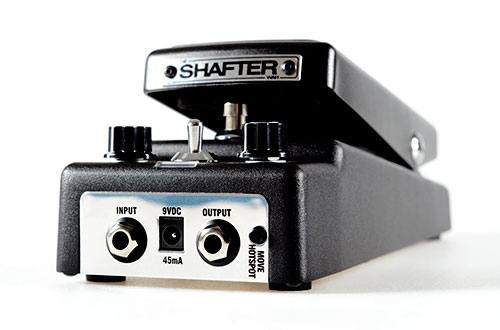

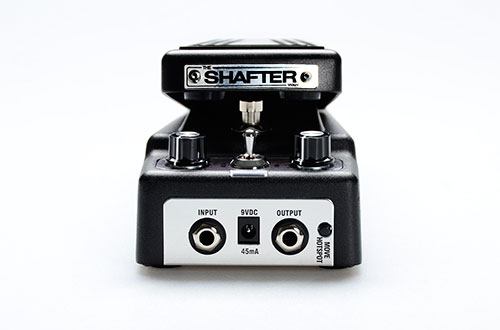

  External connectors	input jack, output jack, 9V DC jack
  Controls	on/off switch, hot spot switch, boost, wah mode, slope
  Pedal size incl. knobs (W x H x D)	96 x 78 x 264 mm / 3,8 x 3,1 x 10,4 inch
  Weight excl. packaging	1,060 kg / 37,4 oz
